Interactive graphics for high-dimensional genetic data

Karl Broman

Biostatistics & Medical Informatics, University of Wisconsin – Madison

kbroman.org
github.com/kbroman
@kwbroman

slides: bit.ly/Bro2014-11

Why aren’t all of our graphs interactive?

2

1994

Bandwidth = 1.00

3

1987

4

1987

Becker & Cleveland (1987)

4

1987

Becker & Cleveland (1987)

4

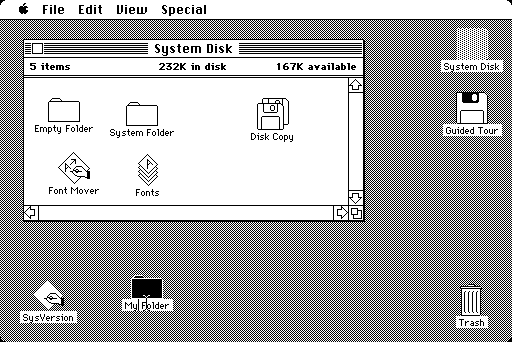

1984

wikipedia.org

5

Why?   summary + details

6

Inbred mice

7

Human vs mouse

daviddeen.com

8

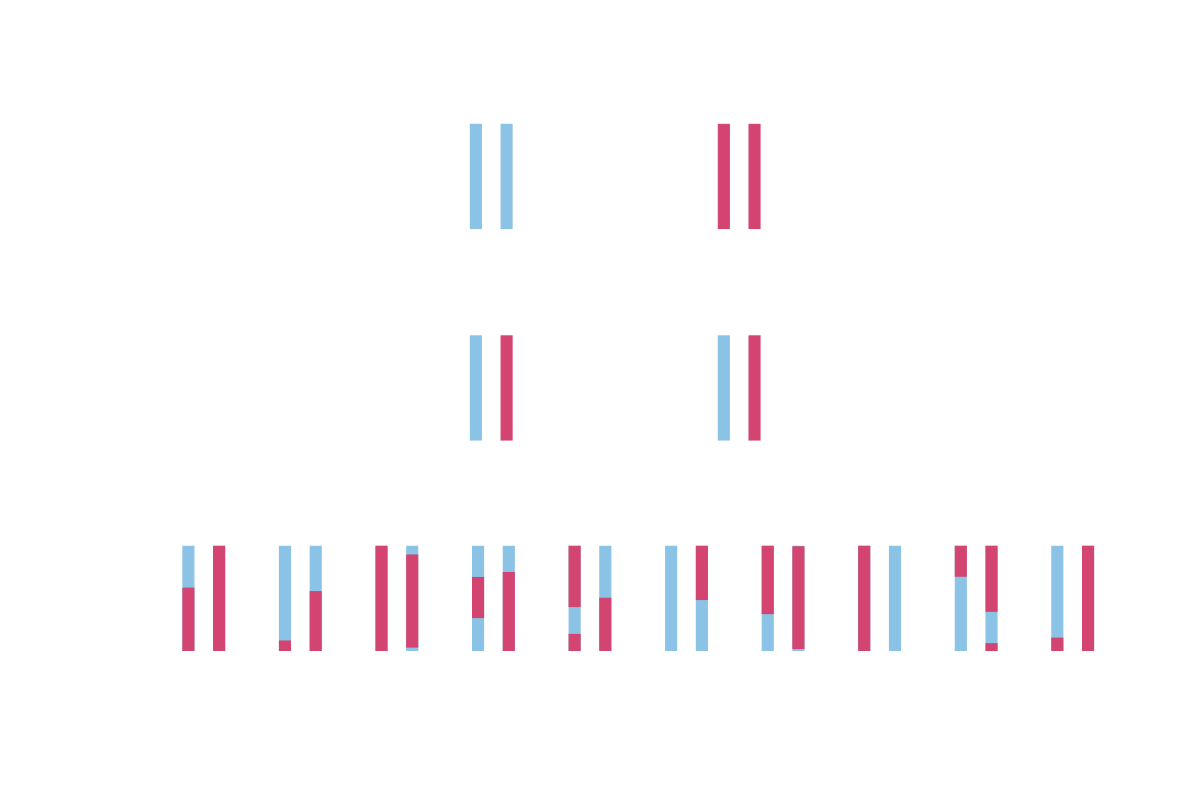

Intercross

9

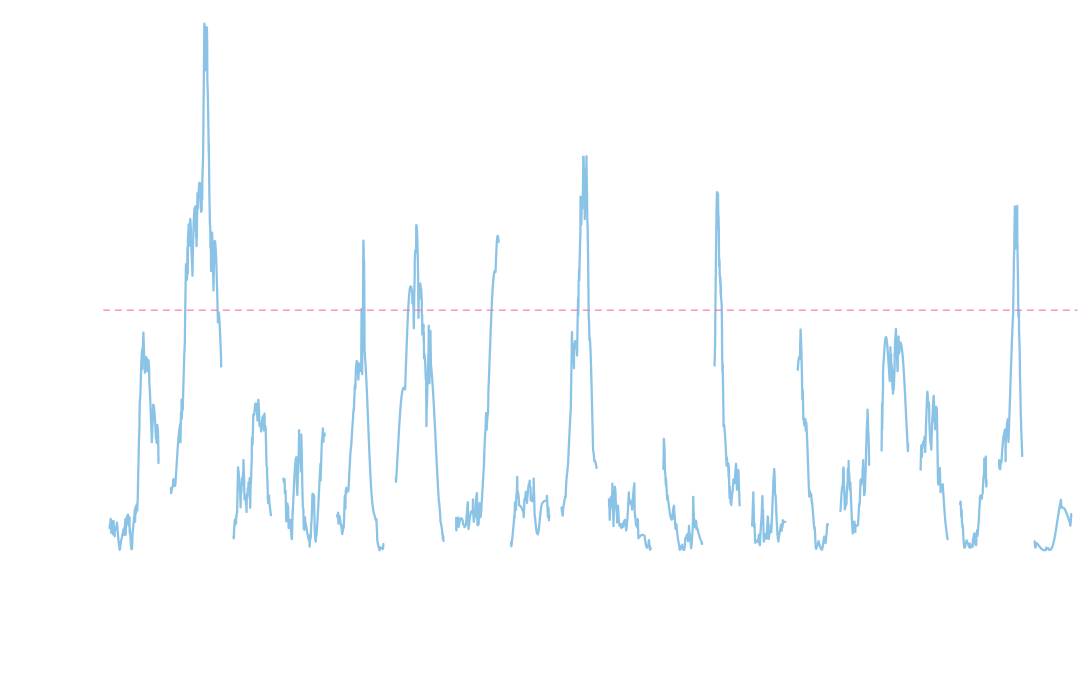

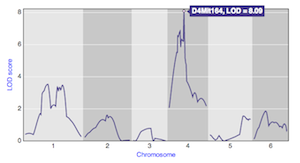

Genome scan for QTL

10

Genome scan for QTL

10

Genome-scale phenotypes

11

Why?   summary + details

12

Why?   people are busy

13

Why?   reports to collaborators

14

Why?   teaching

15

Why?   teaching

16

Why not?

17

Why not?

17

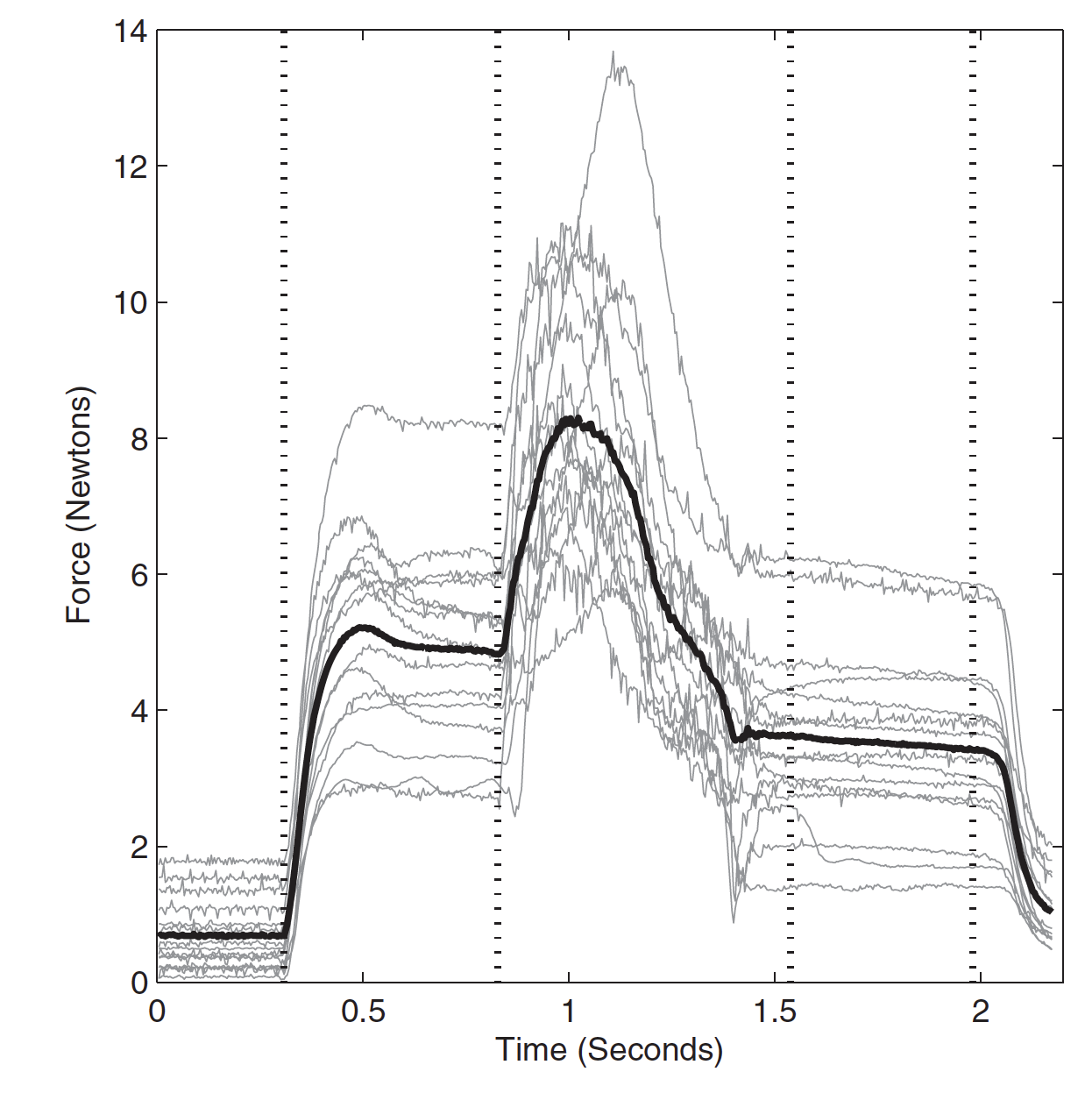

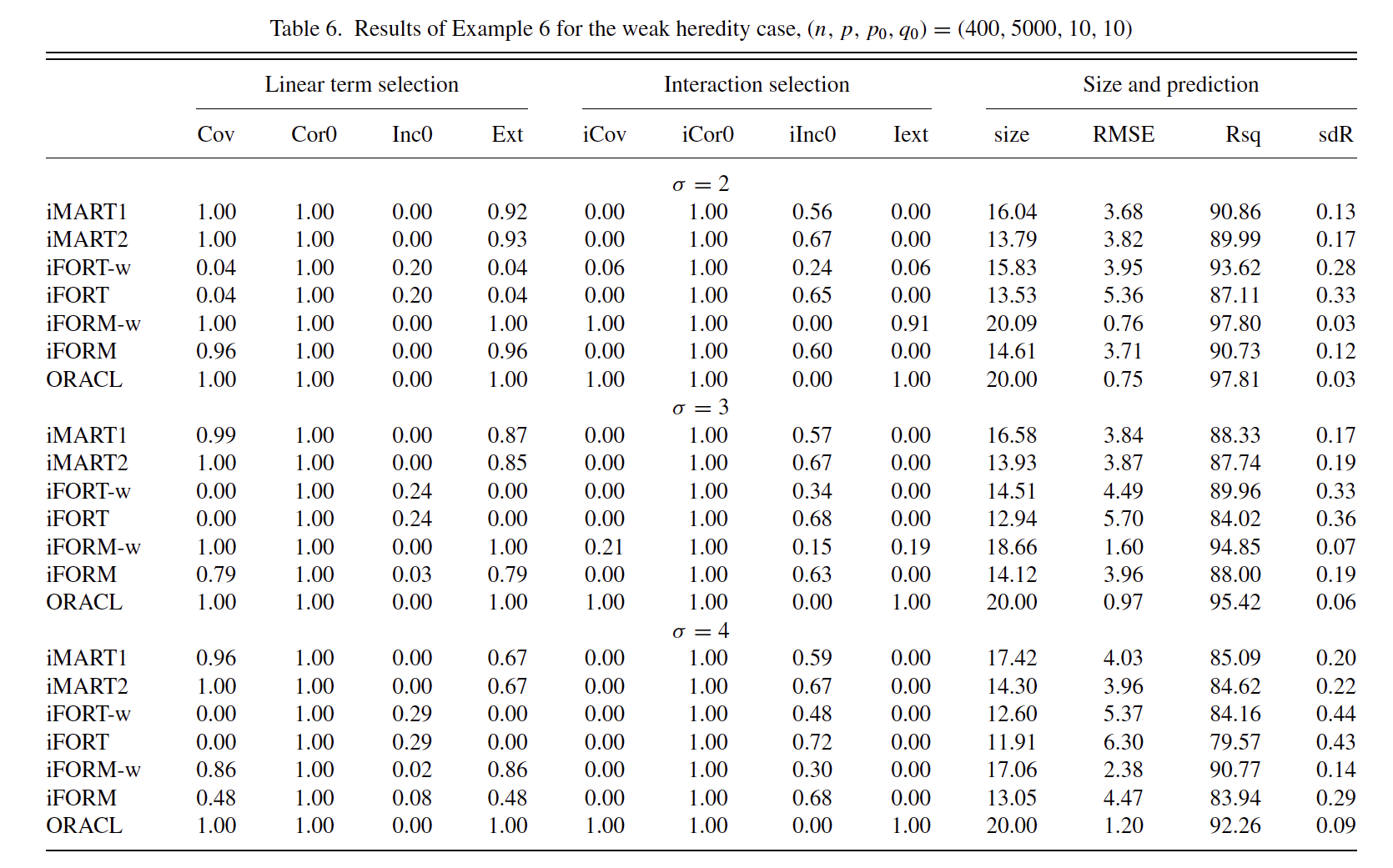

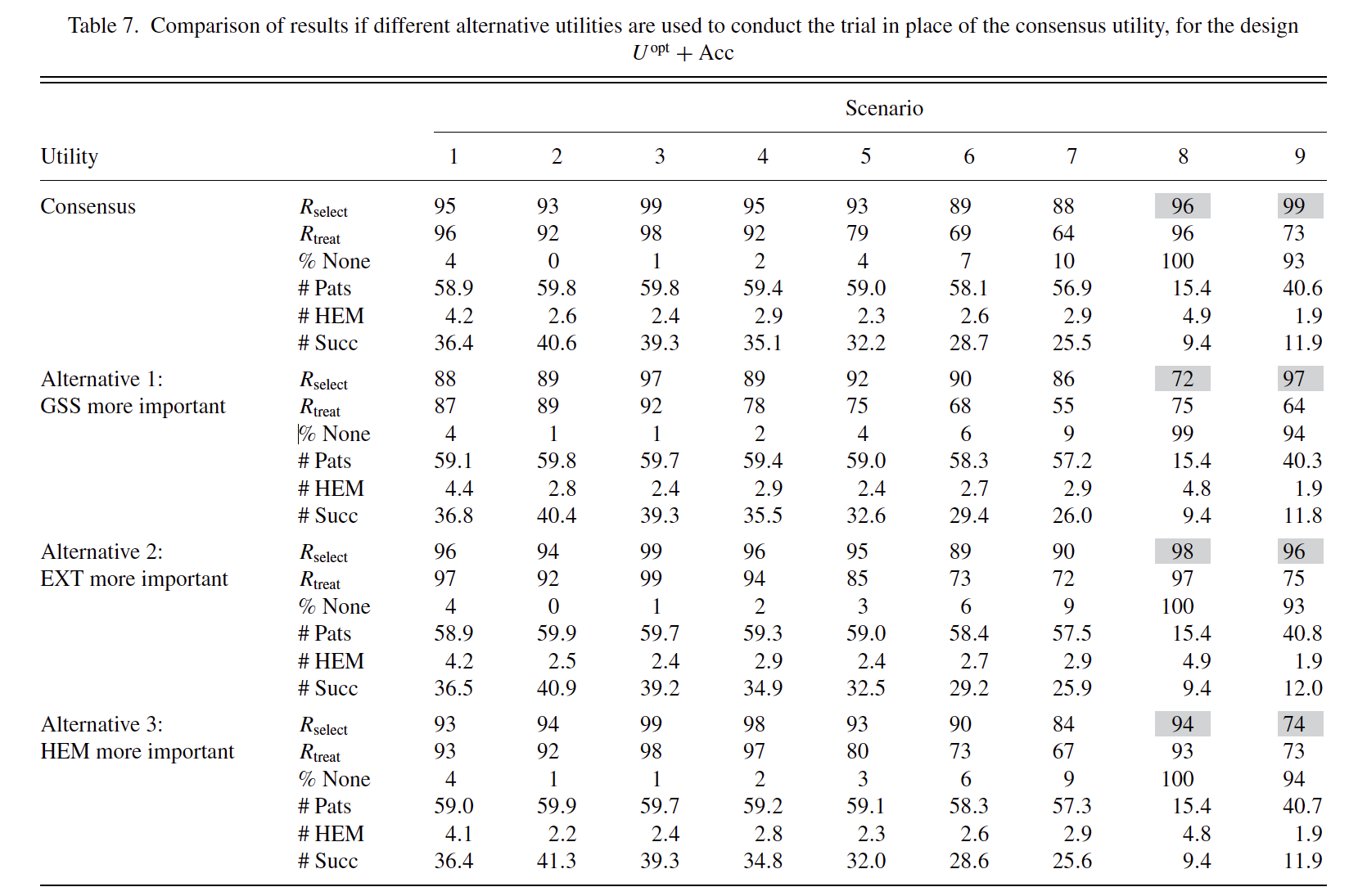

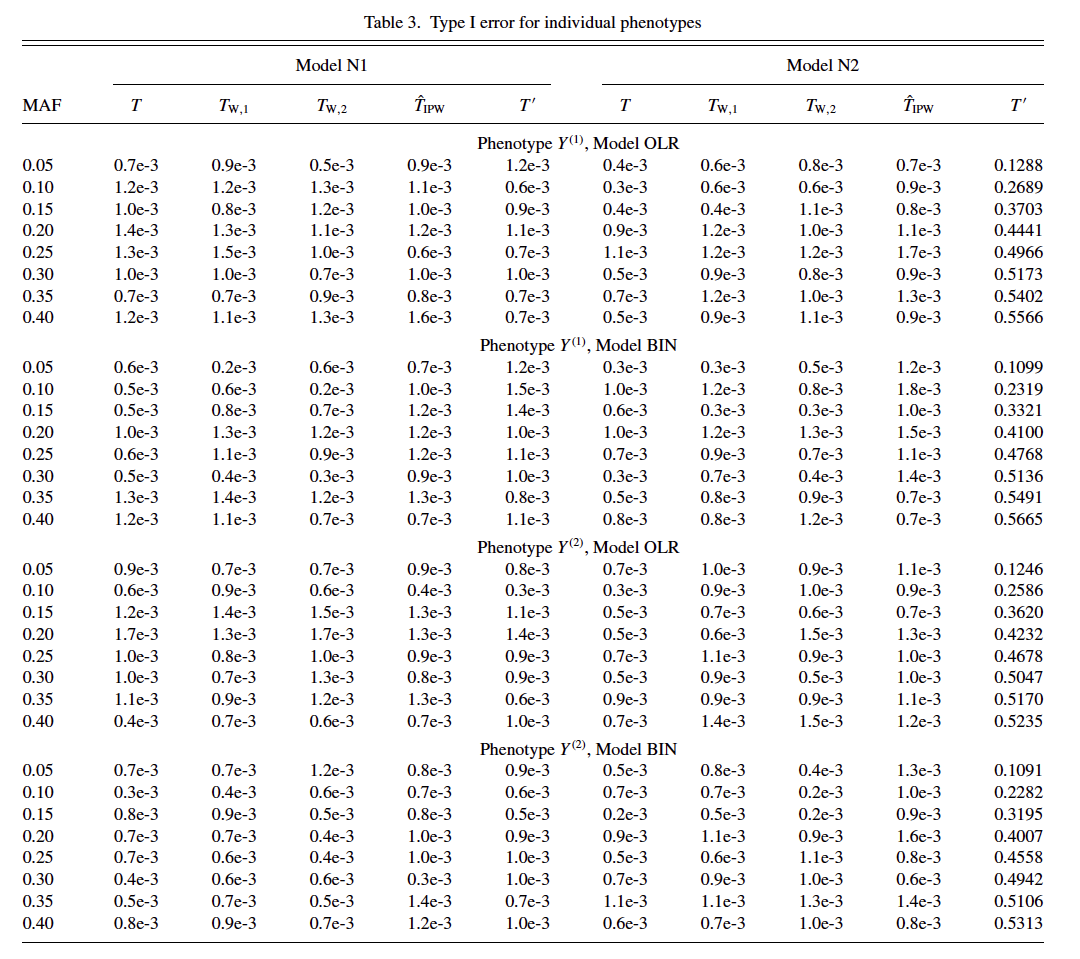

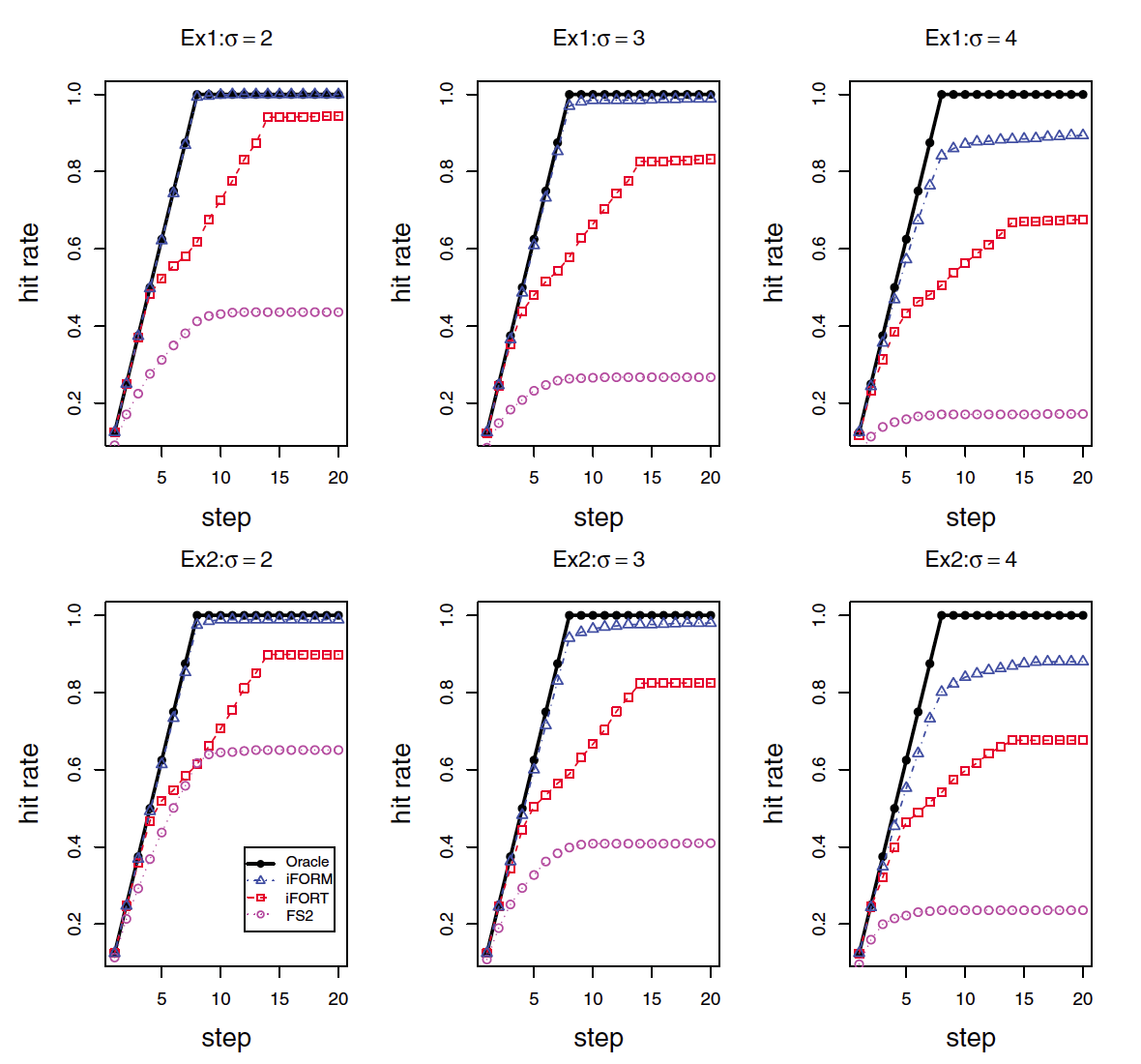

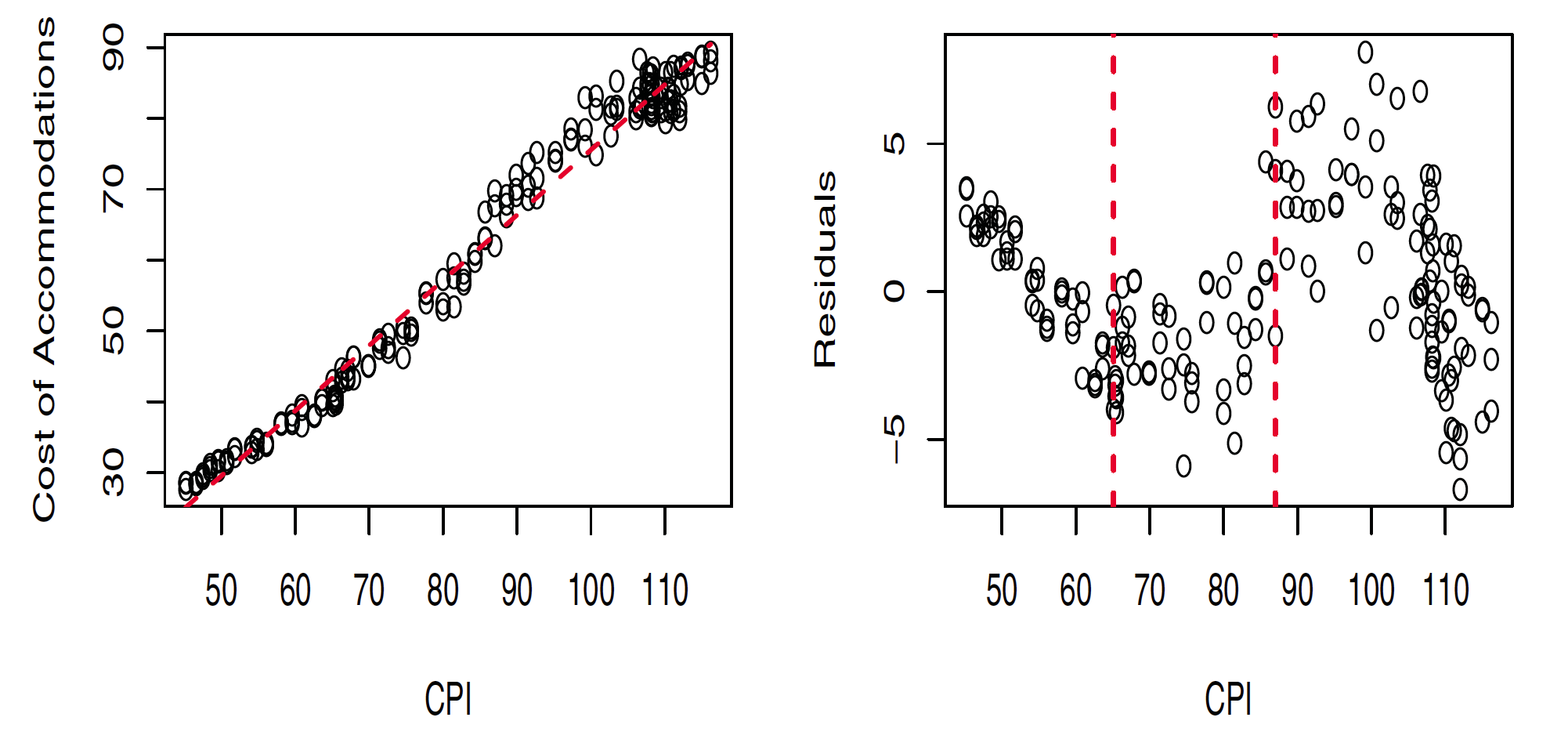

JASA Oct, 2014

18

JASA Oct, 2014

18

JASA Oct, 2014

18

JASA Oct, 2014

18

JASA Oct, 2014

18

JASA Oct, 2014

18

JASA Oct, 2014

18

An alternative to tables

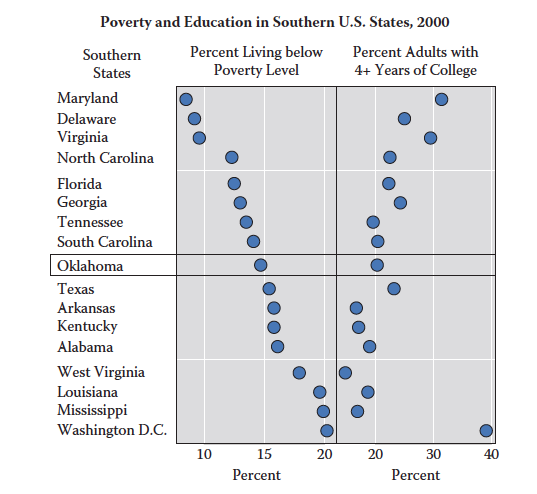

Carr & Pickle (2010) Visualizing data patterns with Micromaps.

19

D3 is awesome!

You just need to learn html, css, svg, and javascript.

And don’t forget .enter()

http://mbostock.github.io/d3/talk/20111018/collision.html

20

JSFiddle is awesome!

21

Coffeescript is awesome!

blob.attr("x", (d) -> d.x)

height = options?.height ? 500

22

Coffeescript is awesome!

blob.attr("x", (d) -> d.x)

height = options?.height ? 500

22

Other options

23

Trade-offs

Easy or flexible?

24

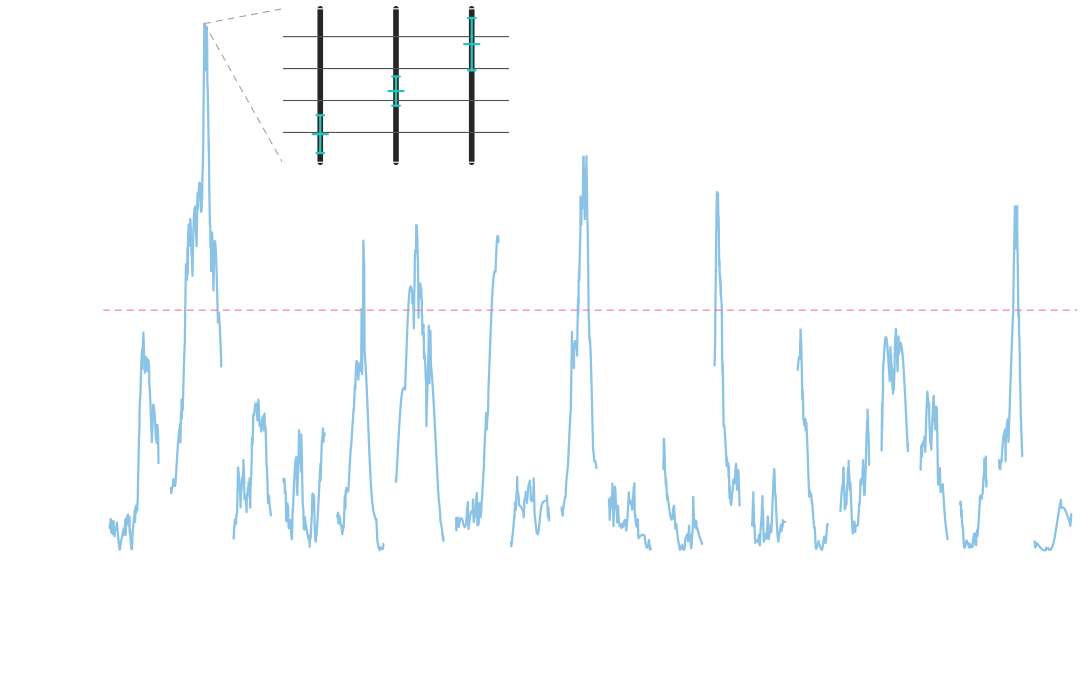

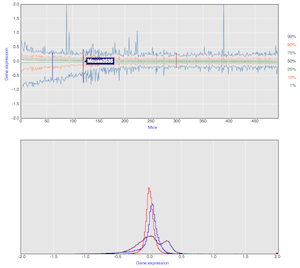

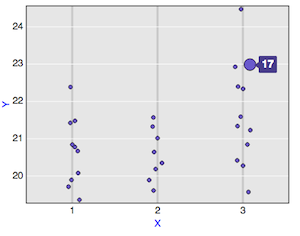

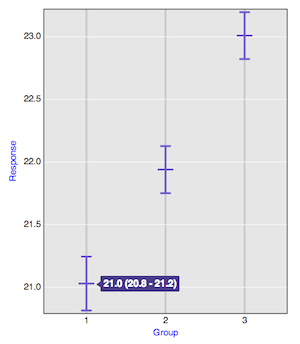

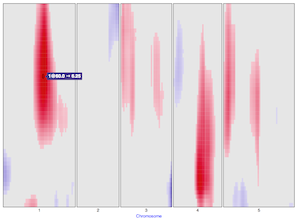

Interactive eQTL plot

25

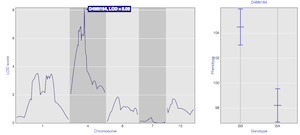

R/qtlcharts   kbroman.org/qtlcharts

26

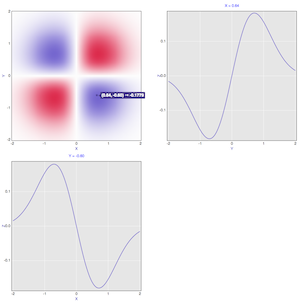

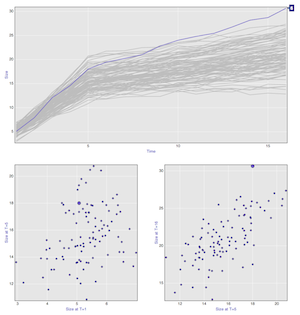

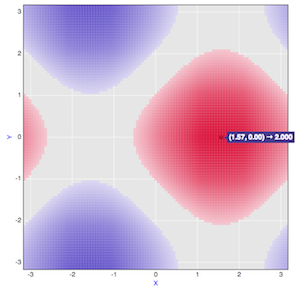

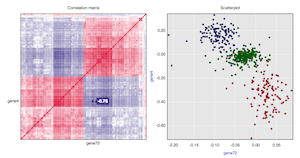

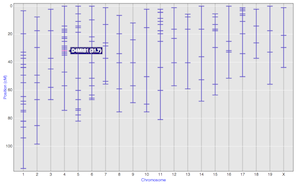

R/qtlcharts   panels

27

Summary

28

Acknowledgments: Data

Alan Attie
Mark Keller
Biochemistry, UW–Madison
Brian Yandell Statistics and Horticulture, UW–Madison
Christina Kendziorski
Aimee Teo Broman
Biostatistics & Medical Informatics, UW–Madison
Eric Schadt Mount Sinai
Danielle Greenawalt
Amit Kulkarni
Merck & Co., Inc.
Edgar Spalding
Candace Moore
Logan Johnson
Botany, UW-Madison

29

Acknowledgments: Code

D3 and stack.js by

D3 tutorials by Scott Murray

CoffeeScript by Jeremy Ashkenas

Eloquent JavaScript by Marijn Haverbeke

CoffeeScript book by Trevor Burnham

d3-tip by Justin Palmer

30

slides:   bit.ly/Bro2014-11

kbroman.org

github.com/kbroman

@kwbroman

kbroman.org/qtlcharts

31
